Description:
Structure:

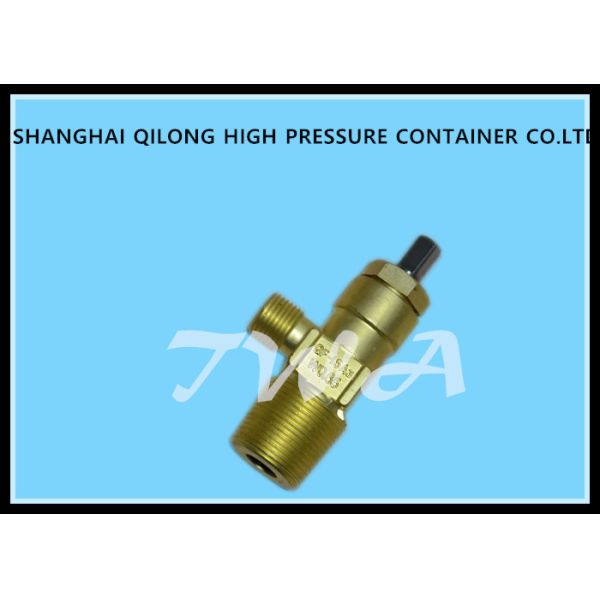

- Oxygen bottle valve is a valve to control the oxygen in and out of the oxygen bottle.
-
Valve type bottle valve structure is mainly composed of a valve body, a sealing washer, nut, hand wheel, valve switch, the valve is composed of the reputation, and the safety device and so on.
-
In addition to the handwheel, and piece, gasket, known more than are made of brass or bronze and pressing machine processing. In order to make the bottle mouth and bottle valve tight according to Fitch, the end of the valve body and the oxygen bottle with the machined taper pipe thread, by rotating horizontal cylinder mouth, the valve outlet, processed into setting thread, used to connect the regulator.
-
Rotating the handwheel, and rod rotates through the switch to make the live leopard rotate together, causing the valve upward or downward shift. The valve moves upward, the gas from the air outlet opening: "take a bottle of gas ejected. Pressing down the valve, because the valve is embedded useful nylon material The valve pad material, so that the valve closed valve valve. Bottle range is 1 5-3mm.
| Model | Product name | Medium | Service Pressure(MPa) | Inside nominal diameter(mm) | Outlet thread mm | Temperature or pressure of safe apparatus(MPa) | Thread connected to cylinder (mm) |
| QF-15 | Acetylene gas cylinder valve | acetylene gas | 3 | 3 | Φ21 clip | - | Φ3.5
|
| QF-15A | Acetylene gas cylinder valve | acetylene gas | 3 | 4 | Φ21 clip | 100℃±5℃ | GB8335 PZ39 |
| QF-15A3 | Acetylene gas cylinder valve | acetylene gas | 3 | 4 | G1/2 | 100℃±5℃ | GB8335 PZ39 |
Our Innovation:
Quality & Service At Freedom, our #1 priority has always been providing our clients with great
quality products and superior customer service.
Quick Lead Time We're dedicated to providing the quickest turnaround times and work very
Hard to ensure that all of your deadlines are met.
Unbeatable Prices We continuously strive to find ways of reducing our production costs.
Brand Awareness The goal of any strong brand is achieve a level of awareness that instills
the idea of quality and value into all of your potential customers.
Advantage:
1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: We can produce any your design.
3.Good Service: We treat clients as friend.
4.Good Quality: We have strict quality control system .Good reputation in the market.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are
not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,
balance before shippment.
Product Tags:
|
|
Oxygen cylinder valves,pressure reducing valves ,QF-15,Acetylene gas cylinder valve Images
|
